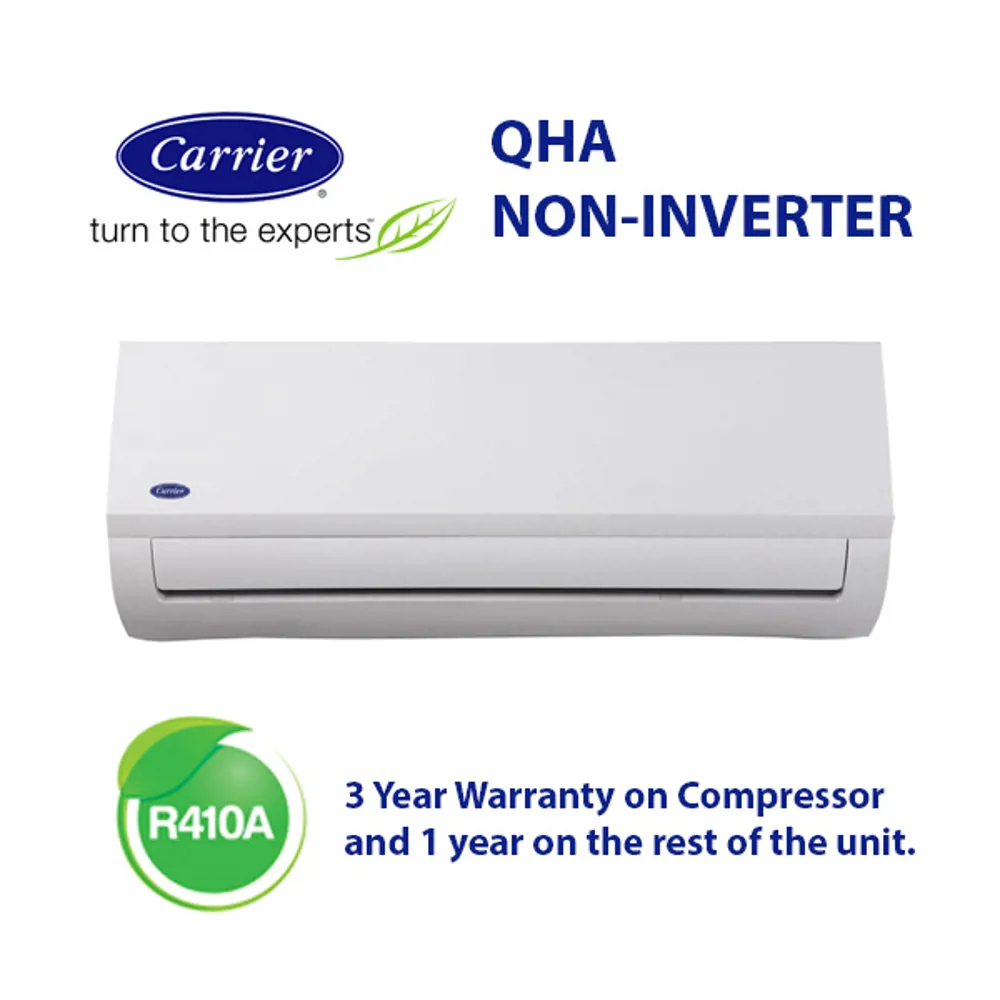

Carrier QHA90N
Model QHA90N
8.4 kW (28,500 BTU/h)
R410A
The Carrier R410A Fixed Speed Hi-Wall midwall split range offers reliable cooling and heating in a compact, wall-mounted design. Using R410A refrigerant and a fixed-speed compressor, it delivers consistent comfort across a variety of residential and light-commercial spaces, with a matched indoor and outdoor unit tested as a complete system.
Full specifications
| Performance | |
|---|---|
| Cooling Capacity | 8.4 kW |
| Cooling Capacity (BTU) | 30,000 BTU/h |
| Heating Capacity | 8.7 kW |
| Electrical | |
| Power Supply | 220-240V / 1Ph |
| Power Input Kw | 2.53 |
| Rated Current A | 11.8 |
| Refrigerant | |
| Refrigerant Type | R410A |
| Pipe Size – Liquid | 9.52 mm |
| Pipe Size – Gas | 15.88 mm |
| Max Pipe Length M | 25 |
| Physical – Indoor | |
| Dimensions Indoor Mm | 1260x283x362 |
| Weight Indoor Kg | 21.8 |
| Noise Indoor Db | 50.7 |
| Features | |
| Inverter | No |
