Samsung AR24BSAAAWK/FA
Model AR24BSAAAWK/FA
6.45 kW (22,000 BTU/h)
EER 3.23 W/W
R410A
Inverter

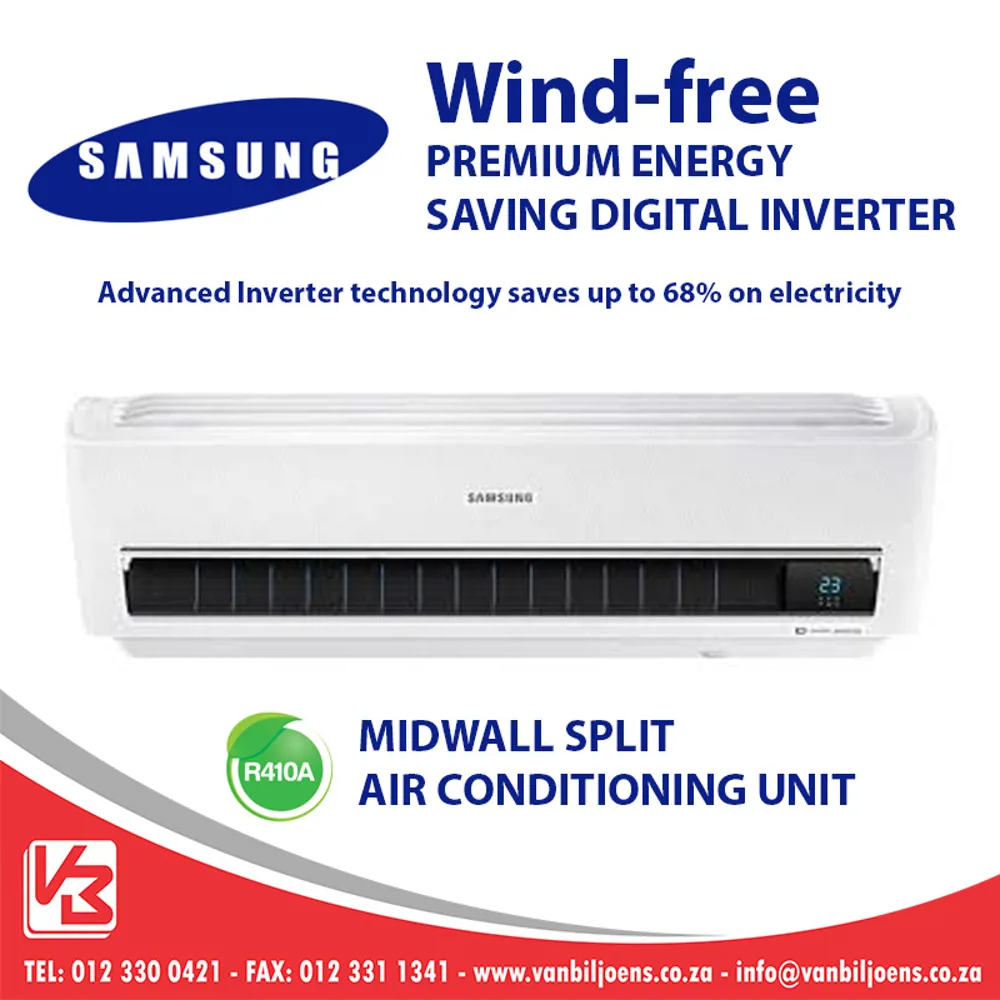

The Samsung AR9500 WindFree V2 inverter midwall split is a premium wall-mounted unit delivering draught-free cooling with advanced air filtration and smart control. Built-in AI and Wi-Fi let you optimise comfort and energy use via the SmartThings app.
Full specifications
| Performance | |
|---|---|
| Cooling Capacity | 6.45 kW |
| Cooling Capacity (BTU) | 24,000 BTU/h |
| Heating Capacity | 6.45 kW |
| EER | 3.23 W/W |
| COP | 3.41 W/W |
| Energy Rating | A |
| COP / EER | 3.41 W/W |
| Electrical | |
| Power Supply | 220-240V / 1 Ph |
| Power Input Kw | 2.0 |
| Rated Current A | 9.2 |
| Refrigerant | |
| Refrigerant Type | R410A |
| Pipe Size – Liquid | 6.35 mm |
| Pipe Size – Gas | 15.88 mm |
| Max Pipe Length M | 30 |
| Physical – Indoor | |
| Dimensions Indoor Mm | 1115x200x410 |
| Weight Indoor Kg | 13.3 |
| Noise Indoor Db | 44.0 |
| Features | |
| Inverter | Yes |
