Samsung AR70F12C1FW/FA
Model AR70F12C1FW/FA
3.5 kW (12,000 BTU/h)
EER 3.21 W/W
R32
Inverter

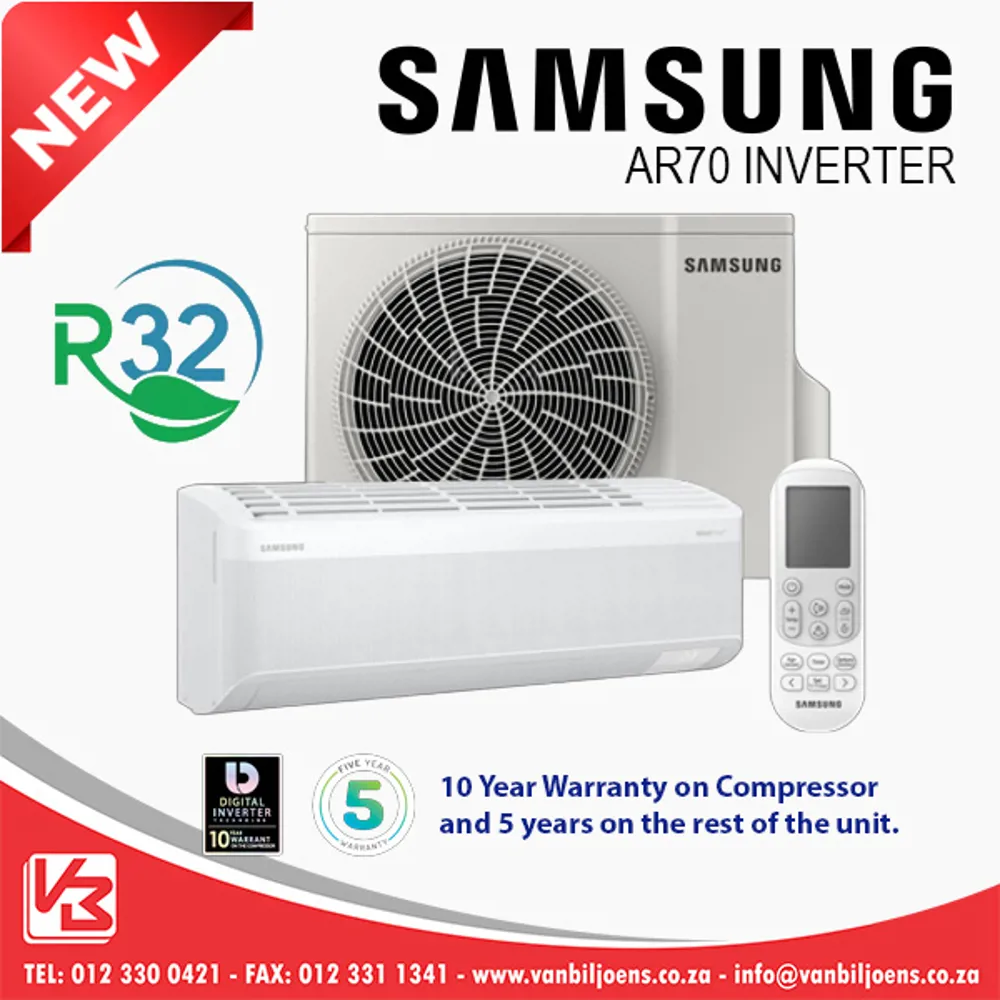

Samsung's AR70 midwall split combines a digital inverter compressor with eco-friendlier R32 refrigerant for efficient cooling and heating. Where documented for the model, it adds WindFree cooling and smart features such as Wi-Fi / SmartThings connectivity and AI Auto Cooling.
Full specifications
| Performance | |
|---|---|
| Cooling Capacity | 3.5 kW |
| Cooling Capacity (BTU) | 12,000 BTU/h |
| Heating Capacity | 3.8 kW |
| EER | 3.21 W/W |
| COP | 3.41 W/W |
| Energy Rating | C:A, H:A+ |
| COP / EER | 3.41 W/W |
| Electrical | |
| Power Supply | 220-240V / 1 Ph |
| Power Input Kw | 1.09 |
| Rated Current A | 5.0 |
| Refrigerant | |
| Refrigerant Type | R32 |
| Pipe Size – Liquid | 6.35 mm |
| Pipe Size – Gas | 9.52 mm |
| Max Pipe Length M | 30 |
| Physical – Indoor | |
| Dimensions Indoor Mm | 820x299x215 |
| Weight Indoor Kg | 8.7 |
| Noise Indoor Db | 38.0 |
| Features | |
| Inverter | Yes |
