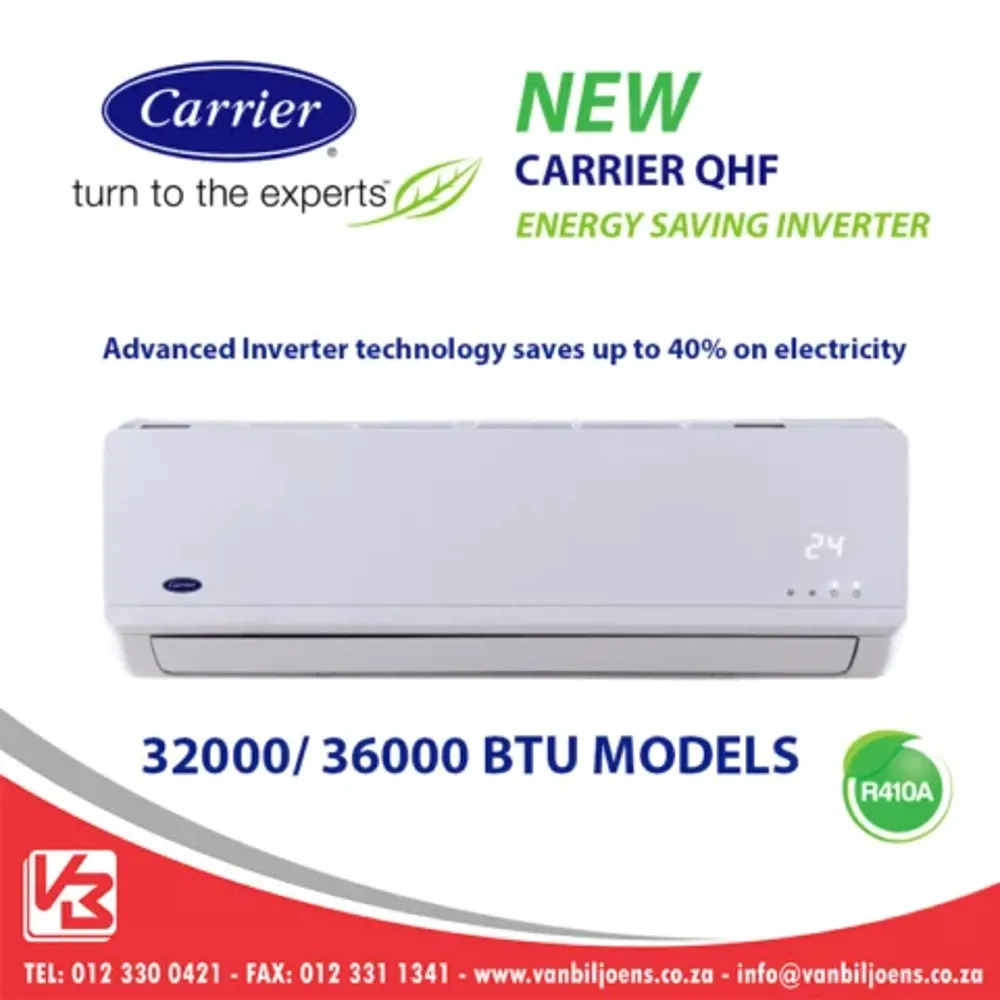

Carrier QHF032DS-1
Model QHF032DS-1
9.2 kW (31,500 BTU/h)
EER 3.19 W/W
R410A
Inverter
The Carrier QHF Elite Plus inverter midwall split range is a higher-capacity hi-wall line using R410A refrigerant, with inverter technology for efficient cooling and heating across larger rooms and open-plan spaces.
Full specifications
| Performance | |
|---|---|
| Cooling Capacity | 9.2 kW |
| Cooling Capacity (BTU) | 32,000 BTU/h |
| Heating Capacity | 9.8 kW |
| EER | 3.19 W/W |
| COP | 3.59 W/W |
| Energy Rating | Cooling B / Heating A+ |
| COP / EER | 3.59 W/W |
| Electrical | |
| Power Supply | 220-240V / 1 Ph |
| Power Input Kw | 2.88 |
| Rated Current A | 12.8 |
| Refrigerant | |
| Refrigerant Type | R410A |
| Pipe Size – Liquid | 9.52 mm |
| Pipe Size – Gas | 15.88 mm |
| Max Pipe Length M | 40 |
| Physical – Indoor | |
| Dimensions Indoor Mm | 1259x283x362 |
| Weight Indoor Kg | 19.0 |
| Noise Indoor Db | 52.0 |
| Features | |
| Inverter | Yes |
